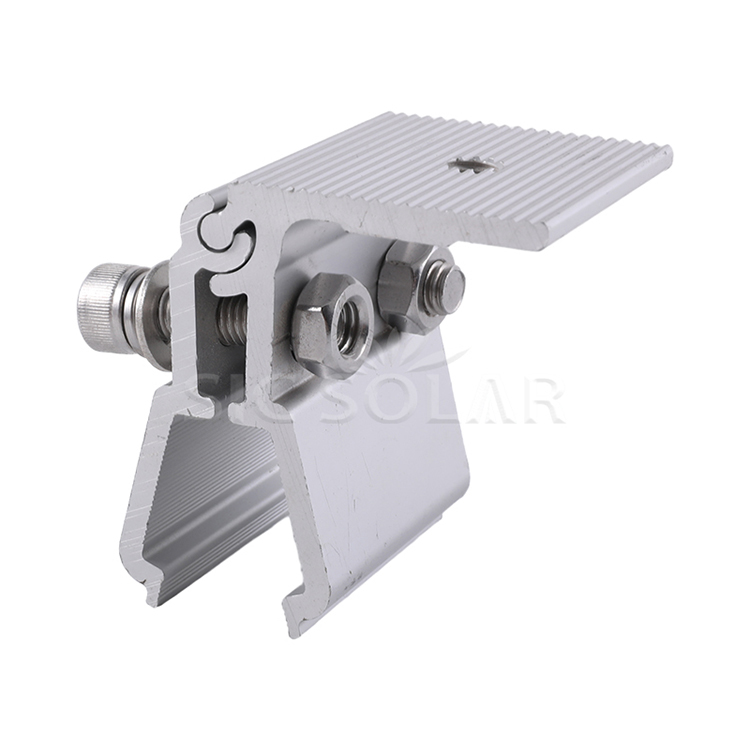

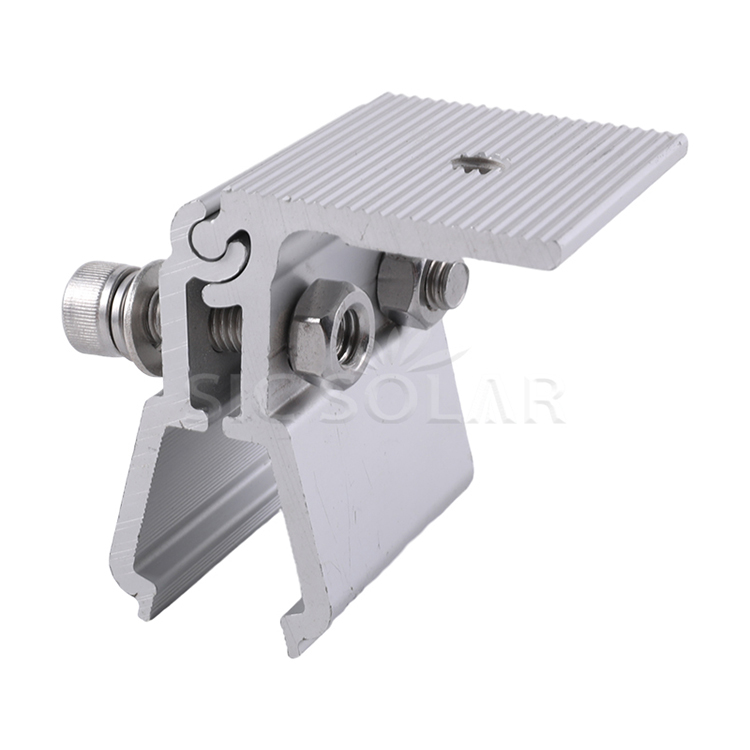

Aluminum Klip Lok Solar Clamp

Aluminum Klip Lok Solar Clamp is a specialized installation solution designed for mounting solar panels on metal roofs, especially those with a Klip Lok profile. This system provides a safe, non-penetrating method to fix solar panels, ensuring the integrity and lifespan of both the roof and the solar installation.

Analogous Products

Details

Item NO.： Westmont-TC-03

Installation Site： Roof

Material： Al6005-T5

Wind Load： <60M/S

Snow Load： <1.4KN/M²

Color： Natural or Customized

Warranty： 10 years and 25 years service time

Installation Process

1、SecureAluminum Klip Lok Solar Clamp: Secure the clips to the metal roof using appropriate fasteners.

2、Secure Grounding Clips: Attach grounding clips for electrical safety.

3、Place Solar Panels: Place solar panels on mounting rails and secure with end clamps.

4、Use Mid clamps: Secure solar panels along rails using mid clamps.

5、Final Check: Make sure all connections are secure and installation is waterproof.

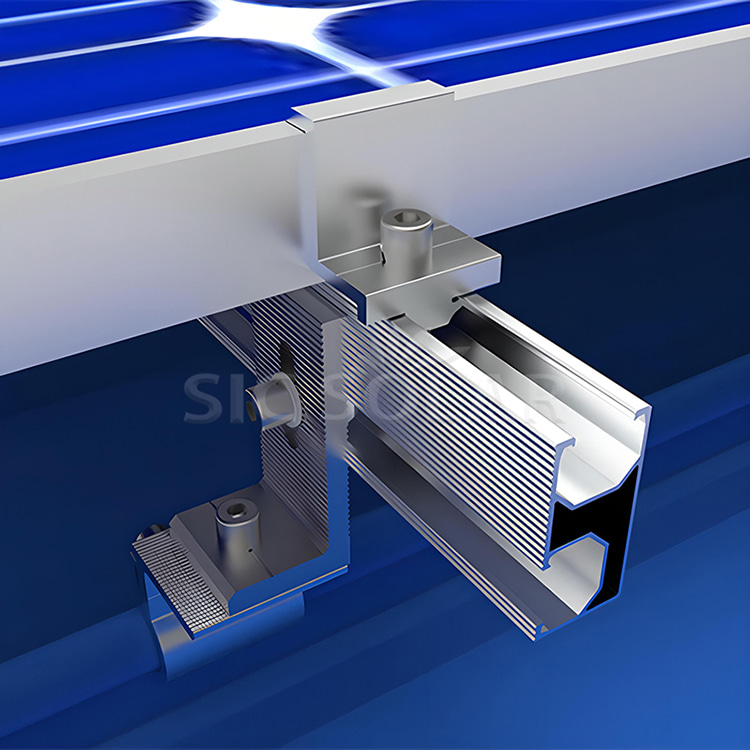

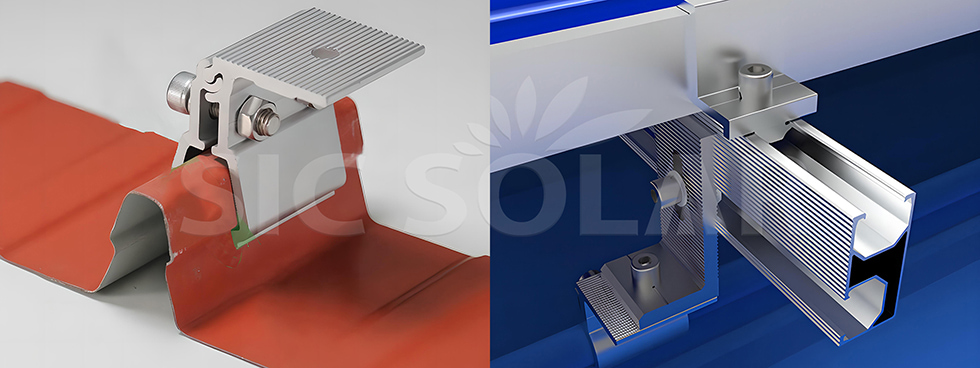

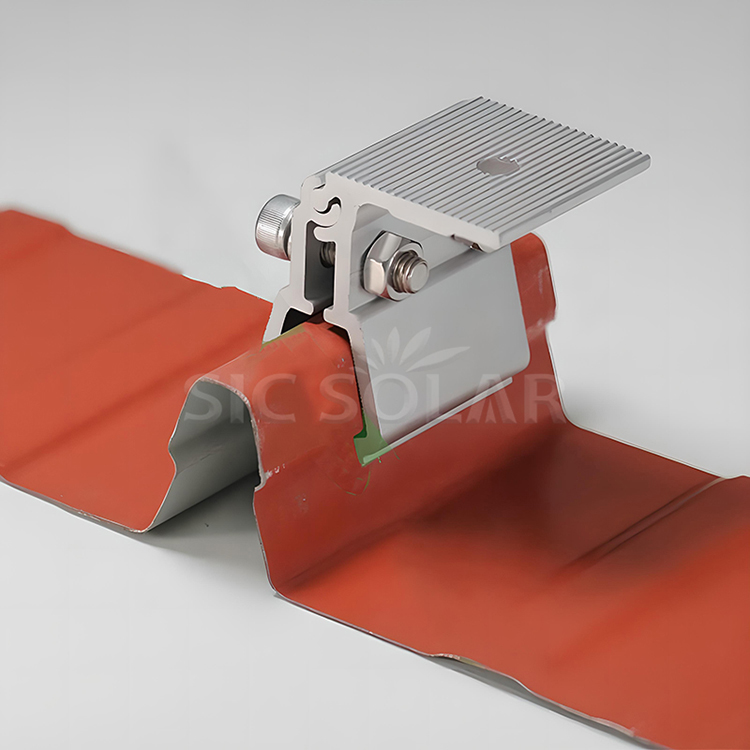

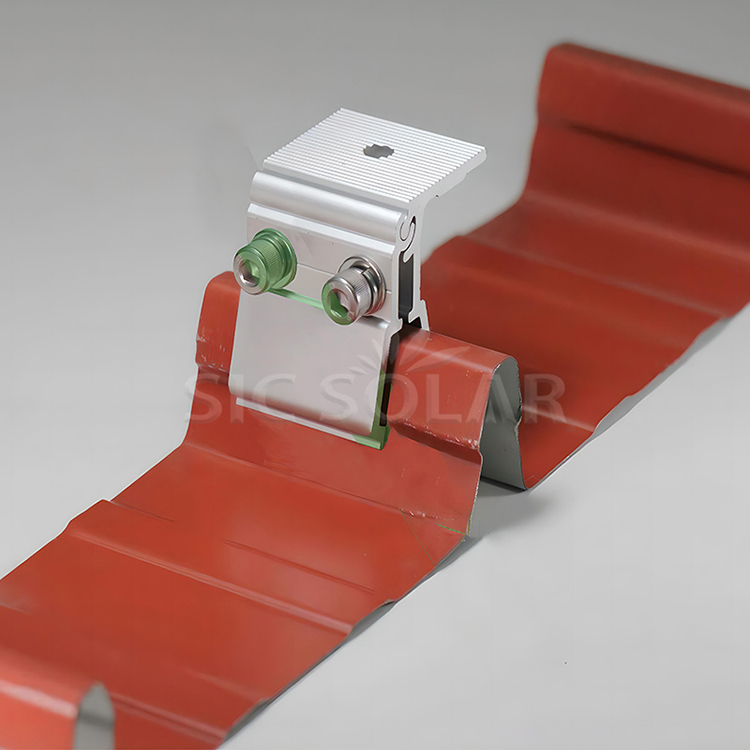

Installation Display

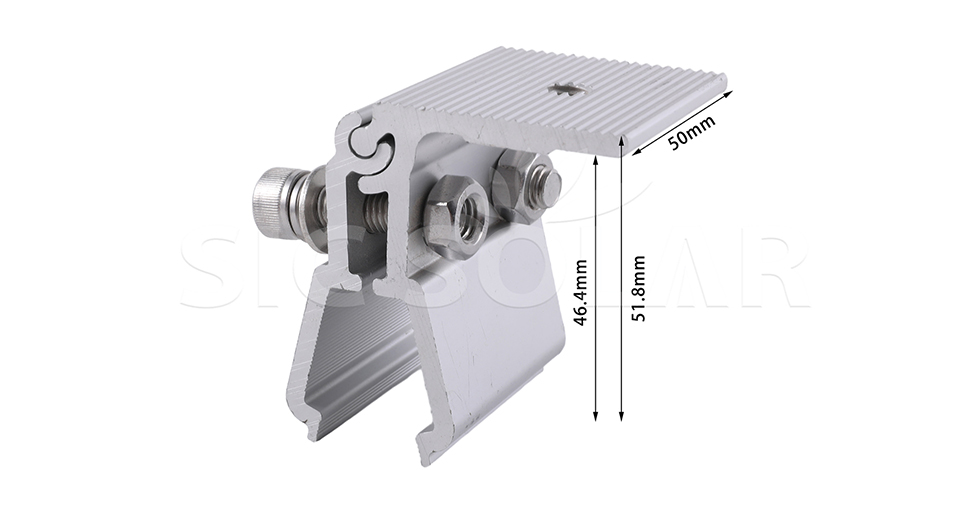

Size Information

Package

We use Aluminum Klip Lok Solar Clamp standard packaging and shipping methods. However, if you have specific packaging requirements, we can coordinate with the factory to package and ship the product according to your specifications.
