Application: Lyc. O235, TCM O-200

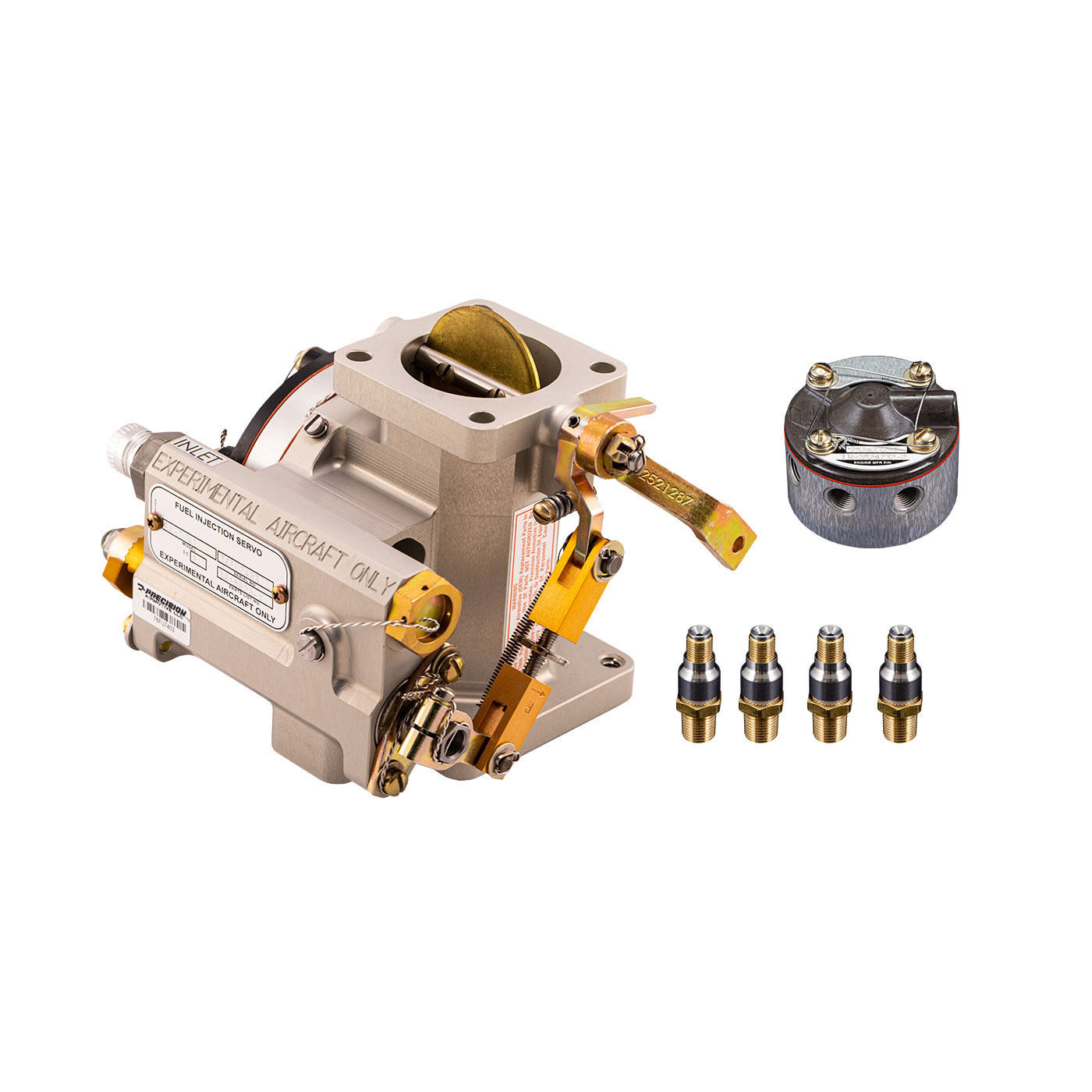

Contains the following:
|
|
Notes |
| 1ea Servo |
P/N 3015024-1 |
- alternate rotation mix
- Reverse rotation mixture option, this configuration is primarily for Vans aircraft (RV) installations.
- Throttle shaft rotates counter clock wise from idle to full throttle when viewed from the lever end.
- Mixture shaft rotates counter clockwise from idle cut off to full rich when viewed from lever end.
- Requires high pressure engine driven and boost pumps (20 psi minimum at idle)
- Servo model EX-3VA1, for additional details and dimensions see: https://www.westmontparts.com/wp-content/uploads/2019/06/Installation-and-Specs-EX-3.pdf
|
| 1ea. flow divider |
P/N 3015004-1 |
Inlet, outlet and pressure fittings are not supplied. |
| 4ea. nozzles |
P/N 2524864-1 |
|
