Silver Hawk EX®

The Silver Hawk EX®, non-certified fuel injection system is proven technology drawn from decades of fuel metering engineering by Precision Airmotive® LLC. Manufactured as experimental, this Silver Hawk EX kit provides experimental aircraft with precise, dependable, and reliable fuel metering.

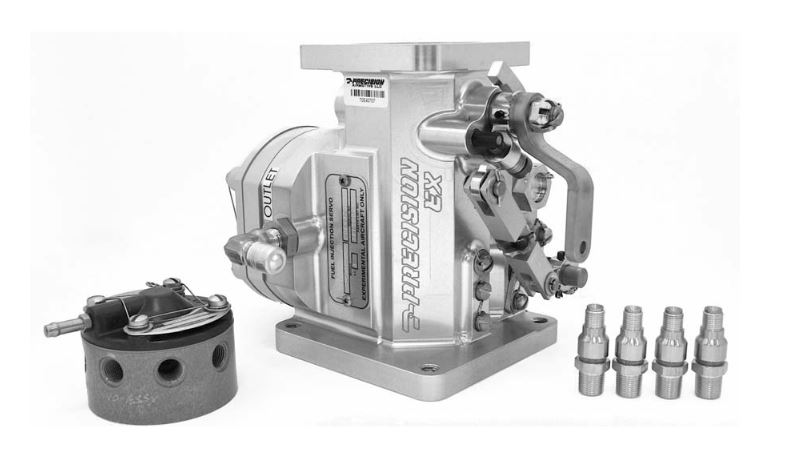

All Silver Hawk EX® Kits include:

New Servo
New Flow Divider*
New Nozzles*

* (Except EX235-2, single point injection and do not require or use a flow divider & nozzles)

There are no core charges with any experimental (“EX”) kits.

PEX-1 Rev 1

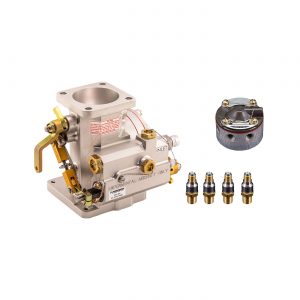

KIT #EX235-1
Application:	Lyc. O-235, TCM O-200, 70-150 hp
Model Number	EX-3VA1
Contains the following:
		Notes
1ea Servo	P/N 3015020-1	Throttle shaft rotates counter clockwise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates clockwise from idle cut off to full rich when viewed from the lever end.
		Requires high pressure engine driven and boost pumps (20 psi minimum at idle)
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524864-2

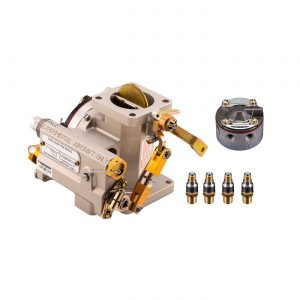

KIT #EX235-1R
Application:	Lyc. O235, TCM O-200, reverse mix
Model Number	EX-3VA1
Contains the following:
		Notes
1ea Servo	P/N 3015024-1	alternate rotation mix
		Reverse rotation mixture option, this configuration is primarily for Vans aircraft (RV) installations.
		Throttle shaft rotates counter clock wise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates counter clockwise from idle cut off to full rich when viewed from the lever end.
		Requires high pressure engine driven and boost pumps (20 psi minimum at idle)
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524864-2

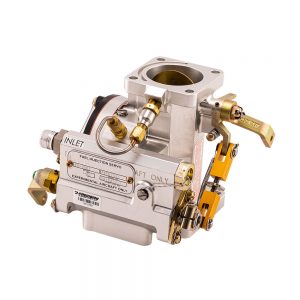

KIT #EX235-2, single point injection
Application:	Lyc. O-235, TCM O-200
Model Number	EX-3VS1
Contains the following:
		Notes
1ea. servo – single point injection	P/N 3015022-1	Throttle shaft rotates counter clockwise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates clockwise from idle cut off to full rich when viewed from the lever end.
		Requires high pressure engine driven and boost pumps (20 psi minimum at idle)
The EX235-2 does not require or use a flow divider & nozzles.

KIT #EX320-1
Application:	Lyc. O-320/IO-320 with 150-160 hp
Model Number	EX-5VA1
Contains the following:
		Notes
1ea Servo	P/N 3015008-1	Throttle shaft rotates counter clockwise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates clockwise from idle cut off to full rich when viewed from the lever end.
		Requires high pressure engine driven and boost pumps (20 psi minimum at idle)
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524864-2

KIT #EX320-2

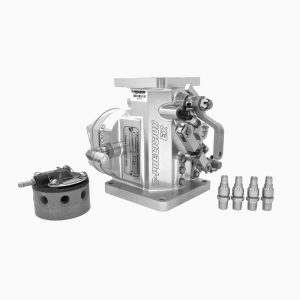

Application:	Lyc. O-320/IO-320 with 150-160 hp.
Model Number	EX-5VA1
Contains the following:
		Notes
1ea Servo	P/N 3015014-1	alternate rotation mix.
		Reverse rotation mixture option, this configuration is primarily for Vans aircraft (RV) installations.
		Throttle shaft rotates counter clock wise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates counter clockwise from idle cut off to full rich when viewed from the lever end.
		Requires high pressure engine driven and boost pumps (20 psi minimum at idle)
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524864-2

KIT #EX360-1
Application:	Lyc. O/IO-360 parallel valve, 160-180 hp.
	Superior parallel valve, 180 hp
Model Number	EX-5VA1
Contains the following:
		Notes
1ea Servo	P/N 3015002-1	Throttle shaft rotates counter clockwise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates clockwise from idle cut off to full rich when viewed from the lever end.
		Requires high pressure engine driven and boost pumps (20 psi minimum at idle)
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524864-2

KIT #EX360-2
Application:	Lyc. IO-360 angle valve with 200hp.
Model Number	EX-5VA1
Contains the following:
		Notes
1ea Servo	P/N 3015006-1	Throttle shaft rotates counter clockwise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates clockwise from idle cut off to full rich when viewed from the lever end.
		Requires high pressure engine driven and boost pumps (20 psi minimum at idle)
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524864-2

KIT #EX360-3
Application:	Lyc. O/IO-360 Parallel vale with 160-180 hp.
Model Number	EX-5VA1
Contains the following:
		Notes
1ea Servo	P/N 3015010-1	alternate rotation mix.
		Reverse rotation mixture option, this configuration is primarily for Vans aircraft (RV) installations.
		Throttle shaft rotates counter clock wise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates counter clockwise from idle cut off to full rich when viewed from the lever end.
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524864-2

KIT #EX360-4
Application:	Lyc. IO-360 angle valve with 200 hp.
Model Number	EX-5VA1
Contains the following:
		Notes
1ea Servo	P/N 3015012-1	alternate rotation mix.
		Reverse rotation mixture option, this configuration is primarily for Vans aircraft (RV) installations.
		Throttle shaft rotates counter clock wise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates counter clockwise from idle cut off to full rich when viewed from the lever end.
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524864-2

KIT #EX360-5
Application:	Lyc. Turbo-normal IO-360, parallel with 180 hp.
Model Number	EX-5VA1
Contains the following:
		Notes
1ea Servo	P/N 3015002-1	Throttle shaft rotates counter clockwise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates clockwise from idle cut off to full rich when viewed from the lever end.
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524917-1

KIT #EX390-1
Application:	Lyc. IO-390 angle valve with 210 hp.
Model Number	EX-5VA1
Contains the following:
		Notes
1ea Servo	P/N 3015018-1	For Glasair, same as EX360-2 except servo P/N is 3015018-1 (same rotation, different levers and clocking).
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524864-2

KIT #EX540-1

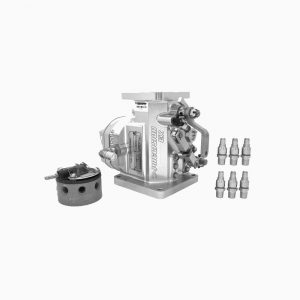

Application:	Lyc. O/IO-540 parallel valve with 235-260 hp
	O-470 Continental
Model Number	EX-5VA1
Contains the following:
		Notes
1ea Servo	P/N 3015006-1	Throttle shaft rotates counter clockwise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates clockwise from idle cut off to full rich when viewed from the lever end.
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524864-2

KIT #EX540-2
Application:	Lyc. O/IO-540 parallel valve with 235-260 hp
	O-470 Continental
Model Number	EX-5VA1
Contains the following:
		Notes
1ea Servo	P/N 3015012-1	alternate rotation mix.
		Reverse rotation mixture option, this configuration is primarily for Vans aircraft (RV) installations.
		Throttle shaft rotates counter clock wise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates counter clockwise from idle cut off to full rich when viewed from the lever end.
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524864-2

KIT #EX540-3

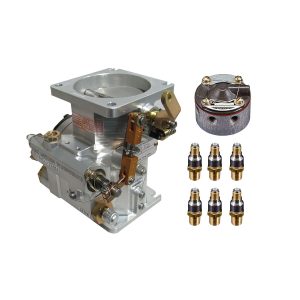

Application:	Lyc. IO-540 parallel/angle valve with 300+ hp.
Model Number	EX-10VA1
Contains the following:
		Notes
1ea Servo	P/N 3015016-1	Same as EX540-1 except servo P/N is 3015016-1, model EX-10VA1 (300 H.P.+).
		Reverse mixture rotation option, this option is primarily for Vans aircraft applications
		Throttle shaft rotates counter clockwise from idle to full throttle when viewed from the lever end.
		Mixture shaft rotates counter clockwise from idle to full rich when viewed from the lever end.
1ea. flow divider	P/N 3015004-1	Inlet, outlet and pressure fittings are not supplied.
4ea. nozzles	P/N 2524864-2

Servos are supplied with a #6 straight inlet fitting and a #4 90 degree outlet fitting. Alternate outlet and pressure ports are capped with an AN814-4. Optional levers and fittings may be purchased by contacting the Product Support department.

Servo to engine and air-box mount gaskets are supplied. Flow divider mount brackets are not supplied.

Silver Hawk EX Kits®
